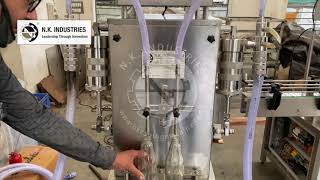

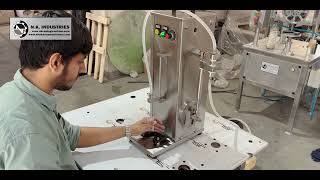

Semi Automatic Volumetric Liquid Filling Machine
N.K. INDUSTRIES manufacturers a wide range of liquid filling machine , our range of liquid filling start with semi automatic liquid filling to fully automatic liquid filling machines .
On this page , we will share more details about semi automatic liquid filling machines. also known as volumetric semi automatic liquid filling or syringe based semi automatic liquid filling machines.
What are semi automatic liquid filling machine ?
semi automatic liquid filling machine are used to fill liquid into bottle , jar and similar container. however a operator is speed to load and unload the bottle on the machine.
Semi Automatic tabletop Volumetric Liquid Filling Machine Model NKLF-30S is suitable for Round Bottle, Flat shape Bottles & Glass Vials with maximum speed of 30 containers per minute depending upon the human efficiency. The output depends upon the various factors like nature of Liquids, Neck Diameter or Vial/Bottle and Fill Volume.
Machine structure is in Stainless Steel finish with double Head Operation. All parts coming in contact with Liquids are made from AISI 316L. The Machine can fill from 5 ml to 1000 ml with different set of syringes.
Sailent Feature
- All Contacts Parts With Liquid Are Made Using AISI 316L
- Machine Frame Construction Is Of AISI 304 & Imparts Vibration Free Operation.
- The Stroke Of Nozzle Holder & Height Of The Nozzles Is Adjustable For Achieving Smooth Entry And Exit Of Nozzles Inside The Neck Of Containers And Avoids Splash / Spillage Of Liquid Or Dripping At Sides.
- Spring Loaded Nozzle Holder Result In To No Breakage Of Containers Even In The Event Centring Is Not Done Correctly
- Wide Range Of Selection Of Syringes Available To Fill From 5 Ml To 1000 Ml.
- Accurately Designed Non Return Valve To Achieve Drip Proof Filling Result & Avoid Messy Platform And Containers.
Technical Specification
|
Machine Name |
Semi Automatic Tabletop Volumetric Liquid Filling Machine |
|
Model |
NKLF-50S |
|
Output |
25 Container Per Minute |
|
Filling Accuracy |
±1 % |
|
Filling Range |
2 Ml To 500ml |
|
No Of Filling Head |
2 Head |
|
Power Requirement |
230 V ,single Phase , 50 HZ |
|
Electrical Supply |
0.5 HP |
|
Container Diameter |
16 Mm To 100 Mm |
|
Height |
Up To 100 Mm |
|
Net Weight |
100 KG |
