Automatic Liquid filling machine

Automatic liqud filling machine.

We offer a wide range for liquid filling machines. Our range for liquid filling machine include machine like volumetric based liquid filling machine , flowmeter based liquid filling machine , perestaltic pump based liquid filling machine and etc . Our range for liquid filling machine start with semi automatic liquid filling machine to fully automatic liquid filling machine. We are one of the few manufacturers with more than 3 decades of experence for manufacturering liquid filling machines.

What are liquid filling machine ?

automatic liquid filling machine are used to fill different type of liquid into bottle , vial , jar or similar container. There are different type of liquid filling machine depending on different liquid and speed requirement.

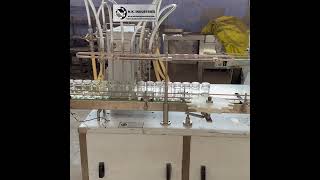

Automatic Double head Volumetric Bottle Liquid filling machine Model NKLF-40 is suitable for Round Bottle, Flat shape Bottles & Glass Vials with maximum speed of 30 containers per minute. It works on volumetric principle where syringes suck liquid from tank and fill it in container. The output depends upon the various factors like nature of Liquids, Neck Diameter or Vial/Bottle and Fill Volume. For Container Sensing, it uses special background Suppression Sensor. The distinctive feature of this machine is “No bottle- No Filling”

Machine structure is made using AISI 304 and all contact parts with liquid are of AISI 316L. Machine is capable to fill from 5 ml to 500 ml in single stroke and above 500 ml can be handled with double stroke.

Type of liquid filling machine :

1. On basis of technology :

Automatic Volumetric type Liquid filling Machine. : Automatic volutmetric type liquid filling machine are used to filling liquid like water , juice etc . It is also know as syring based filling machine as it has syringes in it. this type of liquid filling are more commonly used for filling 200 ml to 2 litres of liquid. depening on liquid volume may varry .

Automatic Flowmeter Based Filling Machine. : Automatic flowmeter based liquid filling machine is one the latest technoligies in the industries. It is more accurate than volumetric type filling machine. It is generally used to fill liquid like honey , oil etc.

Automatic Peralistic Pump Based Filling Machine. : Automatic peralistic pump based liquid filling machine are used to fill lesser volume like 1ml to 10ml . this seris provide higher accuracy for low volume filling.

2. On basis of speed

- Semi automatic

- Automatic liquid filling machine like

-- Four head liquid filling machine

-- Six head liquid filling machine

-- Eight head liquid filling machine

-- Ten head liquid filling machine

-- Tweleve head liquid filling machine

Our playlist for liquid filling machine videos :

https://www.youtube.com/watch?v=GqyHzgCy9QQ&list=PLYA4yc9ta77EhCXFvM4xWkIsSV5atvVZs

Sailent Feature

Quite A Compact Design As Well As CGMP Model.
Machine Frame Made Using AISI 304.

Technical Specification

Machine Name	2 Head	4 Head	6 Head	8 Head	12 Head
Model	NKLFL-40	NKLFL-60	NKLFL-100	NKLFL-150	NKLFL-200
Output	30 Container Per Minute	60 Container Per Minute	90 Container Per Minute	120 Container Per Minute
Filling Accuracy	±1 %	±1 %	±1 %	±1 %	±1 %
Filling Range	2 Ml To 500ml (Above 500ml Help Of Stroke System)	2 Ml To 500ml (Above 500ml Help Of Stroke System)	2 Ml To 500ml (Above 500ml Help Of Stroke System)	2 Ml To 500ml (Above 500ml Help Of Stroke System)	2 Ml To 500ml (Above 500ml Help Of Stroke System)
No Of Filling Head	2 Head	4 Head	6 Head	6 Head
Power Requirement	230 V, single Phase, 50 HZ	440v 3 Phase 50Hz 4 Wire System	440v 3 Phase 50Hz 4 Wire System	440v 3 Phase 50Hz 4 Wire System
Electrical Supply	1 HP	1 HP	1.5 HP	2 HP
Container Diameter	16 Mm To 100 Mm (With The Help Of Change Part)	16 Mm To 100 Mm (With The Help Of Change Part)	16 Mm To 100 Mm (With The Help Of Change Part)	16 Mm To 100 Mm (With The Help Of Change Part)	16 Mm To 100 Mm (With The Help Of Change Part)
Container Height	Up To 100 Mm	Up To 100 Mm	Up To 100 Mm	Up To 100 Mm	Up To 100 Mm
Net Weight	200 KG	200 KG	200 KG	200 KG	200 KG
Dimension (L X W X H) Mm	1530 X 850 X 1700	1830 X 850 X 1700	2000 X 850 X 1700	2400 X 850 X 1700
