Automatic Ampoule Sticker Labeling Machine
Automatic Ampoule Sticker Labeling Machine.
Ampoule sticker labeling machine are essential in the pharma . This series of machine are used to apply wrap around label to ampoule , vial or similar container. there are different type of ampoule labeling machine . There is horizontal and rotary labeling machine . On this page we will share more detail about rotary ampoule labeling machine. This series of rotary ampoule labeling machine can provide speed upto 600 bpm.
We are one of leading companies in india to start manufacturering of pharma packaging machinery . we provide a wide range of ampoule sticker labeling machine with rejection , with camera based rejection , with batch code printing and etc.
What are ampoule sticker labeling machine ?
Ampoule sticker labeling machine are the machine which are used to apply label to ampoules . in this series the ampoule are traveled in infeed worm and travel into center starwheel where labeling is done . this series of machine are aviable in different model like with rejection , with batch code printing on label and etc.
Working principle of ampoule sticker labeling machine :
In this series of machine , the ampoule are loaded into infeed tray of machine . then ampoule are travel from infeed worm to center starwheel and then label is applied onto the ampoule / vial and then collected onto to outfeed tray of the machine.
Type of ampoule sticker labeling machine :
1. On basis of technology :
- Horizontal ampoule labeling machine :
- Rotary ampoule labeling machine :
1. on basis of speed :
- Semi automatic
- Automatic
2. with optional featurers :
- without Rejection
- with Rejection
- with Camera based rejection
- with Batch code printing
Sailent Feature
Automatic Ampoule Sticker Labeling Machine
cGMP model
derlin infeed worm
germotor & gearbox : bonvario , mgm varvel or similar
easy to use
Technical Specification
Automatic Ampoule Sticker Labeling Machine
|
Model |
Nki-asl-400 |
|
Production Rate |
Up to 200 - 500 Ampoules/Minute ( different model for high speed ) |
|
Type of Labels |
Self-adhesive sticker labels |
|
Ampoule Diameter |
10mm to 18mm |
|
Ampoule Height |
50mm to 105mm |
|
Label Length |
15mm to 50mm |
|
Label Width |
10mm to 60mm |
|
Label Roll Core Diameter |
75 to 76mm |
|
Power Specification |
1 H.P. |
|
Electrical Characteristics |
230 Volts, Single Phase |
|
Overall Dimension |
1450mm (L) x 1100mm (W) x 1200mm (H) approx. |
Photos

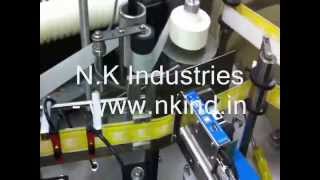

Videos
