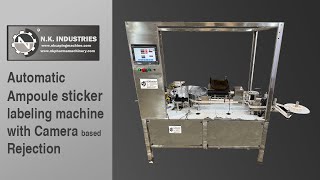

Ampoule sticker labeling machine with rejection

We manufacturer a wide range of ampoule sticker labeling machine like ampoule sticker labeling machine , ampoule sticker labeling with rejection , ampoule sticker labeling machine with camera based rejection , ampoule labeling machine with batch code printing and etc . we also manufacture a wide range of ampoule machinery like ampoule filling and sealing machine , ampoule external washing machine , ampoule labeling machine and etc .

ampoule sticker labeling with rejection are important part of production line,

What is ampoule sticker labeling machine with rejection ?

Ampoule sticker labeling machine with rejection are the machine in which ampoule labeling is done and rejection of that ampoule is done. rejection of different featurers is done like no label , misprint label , for checking batch code and etc.

Working principle of ampoule sticker labeling with rejection :

In this series of machine , the ampoule are loaded into infeed tray of machine . then ampoule are travel from infeed worm to center starwheel and then label is applied onto the ampoule / vial.Then ampoule are passed from camera or color sensor for checking of lableing then rejected ampoule vial are collected in seperate tray and then accuracy ampoule / vial collected onto to outfeed tray of the machine.

Type of ampoule sticker labeling machine with rejection :

On basis of speed :

- 120 bpm ampoule labeling with rejection

- 240 bpm ampoule labeling with rejection

- 360 bpm ampoule labeling with rejection

On basis of rejection :

- color sensor based rejection

- camera based rejection

Sailent Feature

cGMP MODEL
No label rejection
No batch code rejection
Less ampoule breakage

Technical Specification

Model	Nki-asl-400
Production Rate	Up to 200 - 500 Ampoules/Minute ( different model for high speed )
Type of Labels	Self-adhesive sticker labels
Ampoule Diameter	10mm to 18mm
Ampoule Height	50mm to 105mm
Label Length	15mm to 50mm
Label Width	10mm to 60mm
Label Roll Core Diameter	75 to 76mm
Power Specification	1 H.P.
Electrical Characteristics	230 Volts, Single Phase 400/750W Servo Motor with encoder
Overall Dimension	1450mm (L) x 1100mm (W) x 1200mm (H) approx.
