Injectable Vial liquid filling machine with rubber stoppering

Introducing our state-of-the-art Injectable Vial Liquid Filling Machine – engineered for precision, efficiency, and aseptic performance. Designed for the demanding requirements of pharmaceutical manufacturing, our machine ensures reliable, accurate filling of liquid medications into vials ranging from 2?ml to 250?ml.We N.K. INDUSTRIES , manfuacture wide range of machine from washing to liquid filling to capping and etc .

Our fully automatic vial liquid filling machine is built to meet cGMP standards and is ideally suited for both small-batch and large-scale production. It incorporates advanced technologies—including servo-controlled piston or peristaltic pump filling, digital vial counting, and automatic “No Vial – No Filling” safeguards—to ensure optimal product integrity and minimal risk of contamination.All liquid-contact parts are constructed from high-grade stainless steel (SS 316L), while the robust frame is made from SS 304 for enhanced durability and ease of sterilization.

What are injectable vial liquid filling machine with rubber stoppering ?

Injectable vial liquid filling machine are series of machine which can filling liquid into vial and then closes with vial with rubber stoppers. This series of machine are aviable in 2 head , 4 head , 8 head of filling. this series of machine and diliver speed upto 20 - 240 vial per min depending on heads .

Type of Injectable vial filling machine :

1. On basis of technology of liquid filling :

- volumetric syringe based liquid filling machine.

- flowmeter based liquid filling machine.

2. On basis of speed :

- 2 head automatic injectable liquid filling machine.

- 4 head automatic injectable liquid filling machine.

- 6 head automatic injectable liquid filling machine.

- 8 head automatic injectable liquid filling machine.

- 12 head automatic injectable liquid filling machine.

3. On basis of featurers :

- with or without rubberstoppering system.

- with or without laminar air flow system.

- with checkwiegher system.

- with 100% checkwiegher system.

Sailent Feature

Experince of more 4 decades - N.KINDUSTRIES have been manufacturing pharma packaging machine since 1978.
High Accuracy Filling:
Achieve consistent dosing with a filling precision of ±1% (or even ±0.5% in some configurations).
Versatile Filling Range:
Suitable for vial volumes from 2 ml up to 250 ml.
Aseptic Operation:
Designed for operation in sterile environments with built-in pre-gassing and post-gassing systems to minimize contamination risks.
No Vial – No Filling / Stop System:
Sensors and safety interlocks halt the filling process if a vial is missing, ensuring zero product waste.
Automated Feeding and Counting:
Integrated in-feed turntable (unscrambler) and digital vial counter guarantee continuous, high-speed production.
User-Friendly Interface:
Optional PLC system with a graphical user interface (GUI) enables simple set-up, monitoring, and rapid changeovers.
Variable Speed Control:
Equipped with a variable AC frequency drive, the machine allows precise speed adjustments to match production requirements.

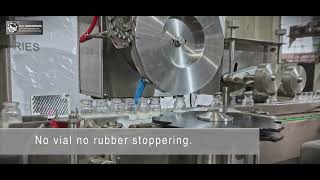

Our youtube playlist for injectable vial filling machines :
https://www.youtube.com/playlist?list=PLYA4yc9ta77Fv2fdNq1V3cQT4Yn4UOo1L

Technical Specification

Injectable vial filling machine technical data :
Specification	Model nki-ivf-30	Model nki-ivf-60	Model nki-ivf-120	Model nki-ivf-240
Filling Heads	Two	Four	Eight	Twelve
Production Rate	Up to 20 - 40 vials/min	Up to 40 - 80 vials/min	Up to 100 - 150 vials/min	Up to 180 - 250 vials/min
Vial Diameter	15 mm to 70 mm	15 mm to 70 mm	15 mm to 70 mm	15 mm to 70 mm
Vial Height	25 mm to 140 mm	25 mm to 140 mm	25 mm to 140 mm	25 mm to 140 mm
Filling Accuracy	±1%	±1%	±1%	±1%
Power Required	1 H.P.	1.5 H.P.	2 H.P.	2 H.P.
Electrical Characteristics	440 V, 3-phase, 50 Hz	440 V, 3-phase, 50 Hz	440 V, 3-phase, 50 Hz	440 V, 3-phase, 50 Hz
Overall Dimensions (L×W×H in mm)	2150×1050×1800 mm	2200×1150×1800 mm	3000×1250×1800 mm	3500×1450×1800 mm
