Automatic Single Head Screw Capping Machine

Automatic Single Head Screw Capping Machine.

We "N.K. INDUSTRIES " are one of the largest manuactuers of capping machine and we are one of most trustworthy name in field of capping machine manufactuering and we follow our name in the manufacting of single head screw capping machine also . As our company aim to provide high quality equipment and thus our vision continues with our range of single head screw capping machine. We provide a wide range of automatic screw capping machine in the market . We have establised our name as one of the best capping machine solution provider and so as our name for automatic screw capping machine.

What are single head screw capping machine ?

Automatic single head screw capping machine are used to close plastic or similar cap with tread in it on plastic , hpde , pet or similar bottle . This series of machine have a single capping head and has conveyer in it . this type of machine is called single head screw capping machine. single head screw capping machine can provide speed upto 20 - 30 bpm of speed depending the size and shape of bottle and caps. Automatic single head screw capping machine are the perfect solution for completing automating the line. This series of machine are very good option for low budget and plants with less capacities . this series of machine are perferct solution for it .

Automatic screw capping machine are the type of screw capping machine in which a single capping head is present. This kind of machine are used close caps of like plastic caps in which treads are prensent like pet bottle caps and etc. This series of machine can provide speed upto 20 - 30 bottle per min. This series of machine are good option for starups and when production requirement is less.

Our range of screw capping machine are up and running for more 10 year in companies and are still up and running

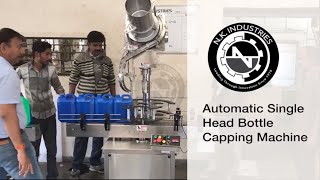

Our range of Automatic single head screw capping machine video.

https://www.youtube.com/watch?v=GrUQInMGOOY&list=PLYA4yc9ta77H_5ZbHm8DiWGmwGeBx_zsW&index=1

Sailent Feature

Parts coming in contact with the Plastic bottle / Screw Plastic cap / exposed to the atmosphere are made out of S.S 304.
Star wheel and back guide set are made of Nylon material for long lasting life.
Single motor synchronizes conveyor, star wheels and platform turret and speed can be varied by the % speed pot on operating panel.
A Special clutch device is incorporated in Star wheel system for stoppage of machine in the event of plastic bottle is over turned or over diameter.
photo sensing device to stops machine automatically in the event of no plastic screw cap in delivery chute.
Specially design Jaw type head for torque adjustment. (Due to this there shall be no damage to the thread of the cap and correct cap application is done. SO there will be no complaint for loose capping)
Damage cap quantity can be reduced by adjusting the gap in vibrator unit.
A BANNER USA MAKE Fiber optic photocell for cap feeder orientation for automatic control for reducing cap damaging.
Imported Gear Motor & Gear box for Main drive.
Control technique, UK Make A.C. Frequency drives for Main drive.
Digital Counter for counting number of sealed BOTTLE.
No Bottle and no cap system for reducing the cap wastage and to yield the higher production.
“No Seal in Chute, Machine Stops System”

Technical Specification

Direction	Left To Right.
Type Of Capping	Screw Capping
Cap Pick On Container	Shut Pick Up
Electrical Supply	1.00 HP For Main Drive
Output	20 -30 Bottle / Minute ( speed vary dependen on shape and size of bottle )
No Of Sealing Head	Single
Power Requirement	230 Volts, 1 Phase 50 Hz.
Height Of Conveyor	Adjustable From 800 To 850 MM
Dimensions	1650 MM (L) X 1050 MM (W) X 1950 MM (H)
Net Weight	550 KGS (Approx.)
Gross Weight	740 KGS (Approx.)
Container Diameter	22 Mm To 100 Mm
Height	15 Mm To 100 Mm
Screw Caps	Diameter: 22 Mm To 56 Mm Height : 15 Mm To 18.3 Mm
