Automatic Shrink Sleeve Labeling Machine

Shrink sleeve labeling machines are essential in modern packaging, offering a versatile and visually appealing way to label containers of various shapes and sizes. They utilize heat-shrinkable film sleeves that conform tightly to the container's contours, providing a 360-degree canvas for branding and product information

We manufacturer a wide range of sticker labeling machines . we " N.K Industries" is pioneer manufacture of Shrink Sleeve Labeling machine which are used to apply the Sleeve on the body of container. we manufacturer wide range of shrink sleeve labeling machines with electric or steam heating tunnel .

The sleeve film is durable, abrasion resistant and waterproof & full body sleeve allows for higher degree of creativity with graphics, multiple Colour Schemes which in turn useful to increase the brand awareness in your business.

The Outstanding Feature of Shrink Sleeve Labeling machine is “No Bottle – No Sleeve system” & very easy interlocking with conventional Shrink tunnel at downstream side.

What are shrink sleeve labeling machine ?

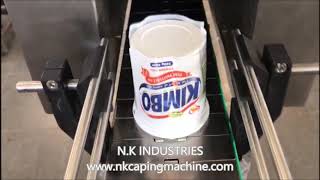

Automatic Shrink Sleeve Labeling Machine are used to apply label on bottle and this label is applied without gum and after the applying label the bottle are passed through heating tunnel through which the label is shrink on to the bottle and thus it is called shrink sleeve labeling machine.

Type of shrink sleeve labeling machine :

1. on basis of speed

- 60 bpm shrink sleeve labeling machine

- 120 bpm shrink sleeve labeling machine

- 300 bpm shrink sleeve labeling machine

and etc

2. On basis of features

- with heating tunnel ( stream / electric ) :

- with or without batch coding system

Sailent Feature

Sleeve Application: Applies pre-cut sleeves onto containers. Methods include:
Slip-on: Sleeve slides over the container.
Mandrel: Sleeve is formed around the container using a mandrel.

Shrinking: Shrinks the sleeve tightly onto the container using:
- Hot Air Tunnel: Uses heated air for shrinking.
- Steam Tunnel: Uses steam for shrinking (faster and more even).
Cutting: Precisely cuts the sleeve material to the desired length.
Container Handling: Mechanisms for conveying and positioning containers accurately.
Speed Control: Adjustable speed to match production requirements.
Container Size Adjustment: Easy changeover for different container sizes and shapes.
Sleeve Length Adjustment: Adjustable cutting length for different sleeve sizes.
Safety Features: Emergency stops, interlocks, and guarding to ensure operator safety.
User-Friendly Interface: Easy-to-use controls and displays for operation and monitoring.

Technical Specification

Automatic Shrink Sleeve Labeling Machine techinical data :

Type Of Labelling	Shrink Sleeving
Machine Operating Direction	Left To Right
Speed Of Machine	50 To 90 BPM
Diameter Of Bottle	Ø28- Ø125mm
Height Of Bottle	30mm-280mm
Label Sleeve Material	PVC,PET,OPS
Sleeve Roll Inner Diameter	102 Mm
Sleeve Roll Outer Diameter	400 Mm Maximum
Voltage	440V,50/60HZ,3PH
Input Power	1.5KW-2KW
Machine Dimension	2400 X 950 X 1900mm
Total Weight	1000KG
