Automatic Four Head Pick and Place type Screw Capping Machine

Automatic Four Head Pick and Place type Screw Capping Machine.

N.K Industries is a market leader in the field of pick and place type capping machine , we manufacture for a wide range of pick and place capping machine like 1. pick and place type Screw capping machine , 2. pick and place type Lug capping machine , 3. pick and place type Snapfit type capping machine.

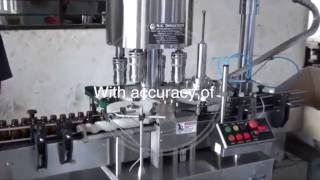

What are 4h pick and place screw capping machine ?

Automatic four head screw capping machine are generally used for pet bottle with screw treaded cap. automatic four head screw cappping machine have four capping head which can provide speed upto 40 - 60 bpm ( speed may vary depending on bottle ).

We manufacture a wide range of pick and place screw capping depending on speed and feature require. you can out our other pick and place screw capping machine on this page : Range of pick and place screw capping machine. We also manfuacturer different type of capping machine you can check out on this page : Range of capping machine manufacturer by us.

This inventive series of Automatic Multi head pick and Place Rotary Screw capping machine is extension to conventional shut pick screw capping technology. Here the Machine is equipped with specially designed two CAM systems with one cam lift the cap precisely and other CAM places that cap perfectly on bottle thus allow nearly 100 % Screw capping. The Series of Automatic Multi head pick and Place Rotary Screw capping machine contain a range of models according to number of screw capping head like 4 head, 6 head, 8 head. Particular Model can be selected according to output requirement. Output speed of this series is from 100 containers per minute to 220 containers per minute.

Series of Automatic Multi Head screw Capping Machines are being integrated with astounding safety features like “safety clutches” at star wheel system and feed worm, “No Bottle No Cap system” & “Automatic cap feeder on off system” & “Magnetic hysteresis clutch head”. Depending upon type of Screw cap / closure, machine can be integrated with Mechanical cap feeder orientator or Vibrator Cap feeder. As an alternative, waterfall type elevator also available for mass storage of Screw cap. Machine can be made available with Toughened glass safety cabinet or Acrylic Glass safety cabinet as optional for safety feature. It can work with wide shaped of container like Round, Square with least formats part. All Screw capping models are being made using AISI 304 and aluminum alloy for trouble-free maintenance and long life.

Our youtube playlist for pick and place type screw capping machine :

https://youtube.com/playlist?list=PLYA4yc9ta77EEZh0pVlB0vf4vtoFaGWOD

Sailent Feature

CGMP Model, Compact Model & Modular System.
Parts Coming In Contact With Bottle / Screw Cap Are Made Out Of AISI 304, Good Housekeeping
Single Motor Synchronizes Conveyor, Star Wheels And Platform Turret.
A Special Safety Clutch Devices Are Being Integrated On In Feed & Out Feed Star Wheel System For Stoppage Of Machine In The Event, Vial Is Over Turned.
A Special Background Suppression Sensor Stops Machine Automatically In The Event, There Is No Screw Cap In Delivery Chute.
Electro-pneumatic No Bottle – No Cap System.
Two Cam System Which Controls Cap Pick Up Assembly And Cap Release Assembly
New Innovative Magnetic Hysteria Sealing Head For Capping On Bottle With Incorporated Clutch System.
Various Cap Feeding Option Available Like Vibrator Feeder System, Mechanical Cap Feeder Orientator Or Water Fall Type Elevator.
Fast Format Changeover From One Size Of Container To Other Size Due To Use Of Custom Designed Part.
Distinctively Designed Position System Prevents From Cap Being Jammed.
6 Digit Precise Counting Arrangement Helps To Manage Production Process.
Outfitted With Emergency Button For Safety Concern.
All Electrical & Brought Out Items Are Of CE Certified.

Technical Specification

Machine Name	4 Head Pick And Place Screw Capping Machine
Model	NKSC-150P
Direction	Left To Right
Production Rate	Up To 100 Bottle Per Minute For 50 Ml Bottle
Electrical Supply	1 HP For Main Drive 0.25 HP For Orientation Unit
No Of Screw Capping Head	4 Head
Auto Cap Pick Up Ratio	≥99.9%
Qualified Capping Ratio	≥99.8%
Power Requirement	440 V ,3 Phase (4 Wire System ) 50 HZ
Height Of Conveyor	Adjustable From 800 To 850 Mm
Bottle Dia	22 Mm To 80 Mm Max
Bottle Height	55 Mm To 200 Mm Max
Screw Cap Dia	22 Mm To 52 Mm Di Cap (with The Help Of Change Part)
Dimension (L X W X H) Mm	1530 X 812 X 1900
