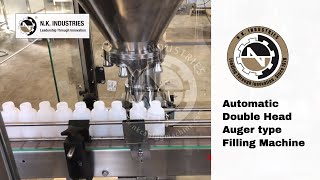

Automatic Double Head Auger type Powder Filling Machine

Automatic Double Head type Auger Filling Machine.

Automatic double head auger type powder filling machine are used for filling powder like talcom powder , speice like hing , termaric etc ,

Automatic Double Head auger type powder filling machine can delivere speed upto 50 bottle per min ( speed can vary depending upto size of bottle / container ).

We can provide double head auger type powder filling machine for almost any shape and size of container like roud bottle , sqaure bottle , oval bottle and etc .

We are one of the largest manufacturers of double head auger type powder filling machine.

Automatic double head auger type powder filling machine youtube video playlist :

https://www.youtube.com/watch?v=HV1dr_Nirss&list=PLYA4yc9ta77GlWVowHHLjGkQkPrAyspIO&index=3&t=0s

Sailent Feature

All Contact Parts In S.S.316 Or Food Grade Material.
Structure & All Exposed Parts & Structure Cladded Or Covered With S.S. 304
Works On Auger Metric Principle With Either Clutch / Servo Mechanism For Precise Operation
High Productivity Because Of Fast And Reliable Synchronization Between filling And Indexing Systems
Weight Variation: Less Than +/- 1.0 % Subject To The Powder Nature, Fill Weight & Speed.
Minimum Change Parts, Hence Quick Changeover.
No Change Part Require For Change In Bottle Height
Virtually No Powder Loss – Precise Alignment By A Positive Holding Mechanism Ensures That The Nozzle And The Bottles Are Perfectly Aligned Thus Ensuring No Powder Loss.
Variable Speed For Slat Conveyor – The Speed Of The Slat Conveyor Can Be Controlled With A/C Variable Motor Thus Falling Of Bottles Is Totally Eliminated.
No Dripping – Drip Control Mechanism To Control Dripping After Completion Of Dosing.
Lower Cost Of Production – Since Requirement Of Labour, Space And Support Facilities Is Minimal.
Simple Operation – Easy To Operate & Maintain
High Operational Comfort – Since All Parts Are Easily Accessible And Controls Are Conveniently Located.
Long Life – Sturdy Robust Design, Sophisticated Manufacturing Techniques And Better Material Of Construction Ensures Long And Trouble-free Life.
Ease Of Maintenance – Due To Less Number Of Moving Parts.
No Bottle – No Fill Mechanism- To Avoid Wastage Of Medicament In Absence Of Bottle.

Technical Specification

Machine Direction	Left To Right
Production Rate	Output And Accuracy Of The Machine Is Subjected To Flow Property Of The Powder And Other Related Conditions. But For Calculation Purpose Usually 5 Gms Of Filling Gives An Output Of 60 BPM.
Fill Volume (Range)	5 Gms To 500 Gms
Bottle Diameter	25 MM To 80 MM MAX.
Filling Accuracy	+/- 1.0 % Subject To The Powder Nature, Fill Weight & Speed.
Hopper Capacity	25 Liter
Power Consumption	2 HP
Power Connection	415 VAC, 50 Hz ,3PH + N
Machine Dimension (L X W X H ) MM	1700 X 1000 X 900
Floor Space	1200 X 1050 Mm 1900 X 1050 Mm ( Including Slat Conveyor)
